EPDM Rainwater Drain Horizontal 90°
Evacuation of roof rainwater

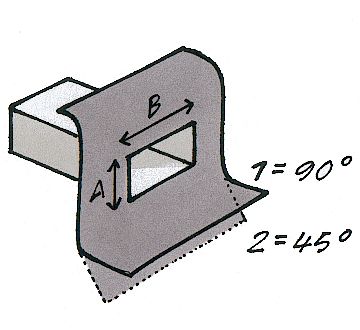

The EPDM Rainwater Drain Horizontal is designed to drain rainwater from your roof. This drain is available in 45° or 90° angles and features an EPDM roof collar. The pipe is permanently flexible, highly elastic, UV-resistant and root-resistant.
- Permanently flexible, elastic and 100% UV-resistant
- High elasticity, up to 400% stretch
- Root-resistant, suitable for green roofs
Related products
Step-by-step plan
- How do I install a rainwater drain?
- Always use the preformed rainwater drains because they guarantee a perfect watertight finish: rectangular, horizontal drain with city outlet 45°/90° or round, vertical built-in drain.

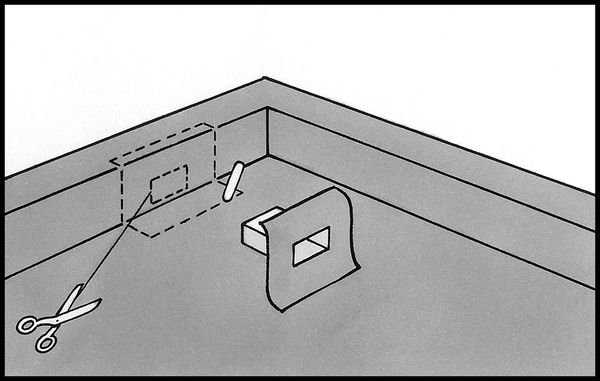

- Determine where to place the drain, draw its outline with chalk, and cut out the segment where the drain will be. If necessary, cut the drain pipe to the correct length.

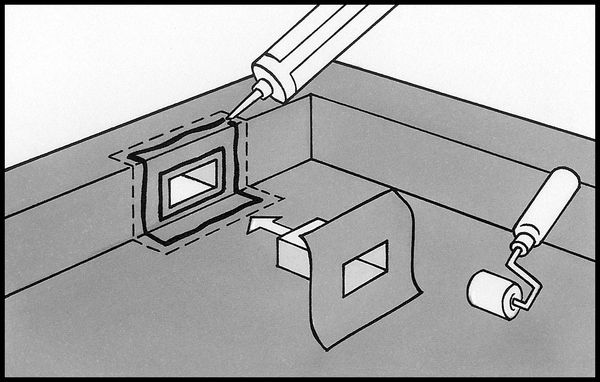

- Then apply two continuous beads of ROOF GLUE EPDM: one around the cut-out hole and one inside the marked outline. Ensure that the beads of glue are always applied about 2 cm from the side to obtain good adhesion.
- Cover with the rainwater drain and press firmly. Always ensure that a small amount of glue protrudes from under the drain. Carefully remove the excess glue.
Accessories
Technical features
| Dimensions | 10 × 6 × 30 cm |
|---|---|
| Variation | Rainwater Drain EPDM H spigot outlet 90°/6 x 8 cm |
| EAN | 5413466941742 |
| Volume | 1 |
| Color | Noir |
| Content indication | Stuk(s) |
| Material | EPDM |
| Product use | Drain rainwater |
| Thickness (mm) | 300 |
| Width (mm) | 60 |
| Length (mm) | 100 |
