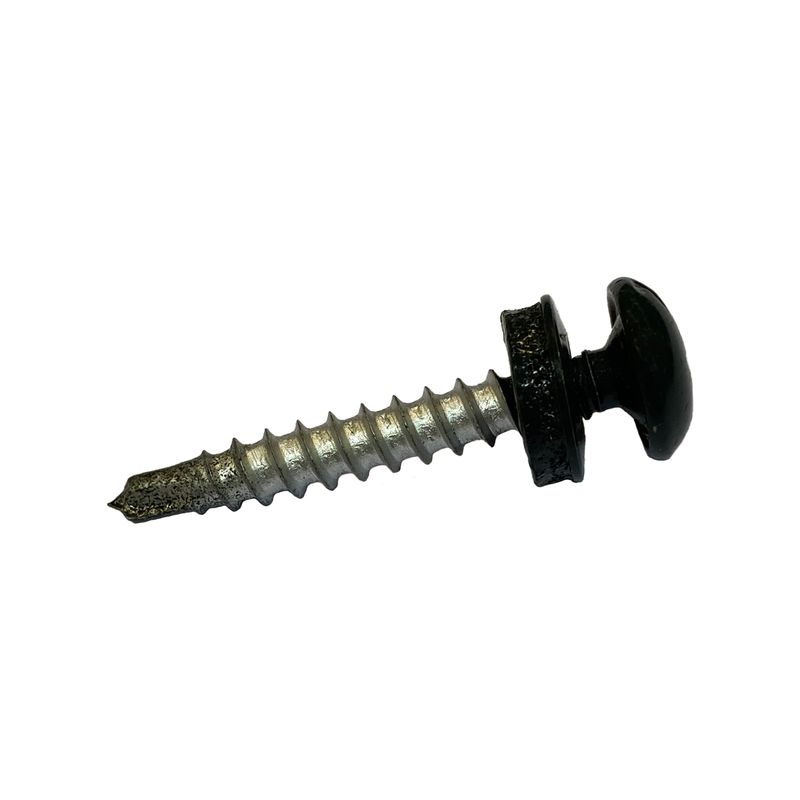

Black Roof Edge Screws
Self-tapping screws with EPDM washers for polyester edge trim
Aquaplan Black Roof Edge Screws are self-tapping screws with an EPDM washer. The EPDM washer ensures waterproof fastening of your polyester edge trim.
- Self-tapping
- Waterproof fastening
- Black
Step-by-step plan
Technical features
Related products
Step-by-step plan
- Place the edge trim on the underlay of your roof.
- Fasten with our Edge Trim Screws 5 cm from the end of the edge trim, then fasten a new screw every 25 cm.
- Take a straight POLYESTER CONNECTOR and insert it into the vertical section of the next edge trim. Place this next edge trim 2 mm from the previous one.
- Finally, place the top layer of your roof covering over the edge trim. To ensure a waterproof finish, seal the edge trim under the upper lip with ROOF SEAL MASTIC.
- How do I use black edge trim with EPDM? Place the edge trim on the EPDM layer of your roof.
- Fasten with our Black Edge Trim Screws 5 cm from the end of the edge trim, then fasten a new screw every 25 cm. These screws have an EPDM washer, so additional sealing is not necessary.
- Then take a straight connector piece and place it in the vertical part of your next roof edge profile. Place this next roof edge profile 2 mm from the previous one.
- To make a corner, you can easily cut two roof edge profiles at a mitre. Use a corner connector to ensure a perfect fit.
Documents
Technical features
| Dimensions | 3,5 × 1,3 × 1,3 cm |
|---|---|
| Variation | Black Roof Edge Screws (25 pcs) |
| EAN | 5413466958016 |
| Volume | 25 |
| Color | Noir |
| Content indication | Stuk(s) |
| Material | Galvanized metal |
| Product use | Fixate |
| Thickness (mm) | 13 |
| Width (mm) | 13 |
| Length (mm) | 35 |
